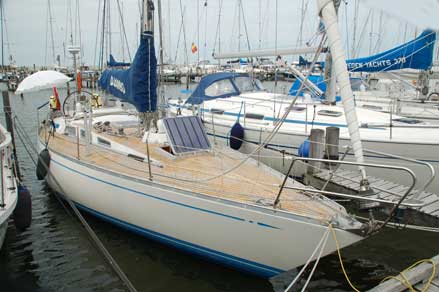

Nautor Swan 38 Sparkman and Stephens

Contact us NOW for these two new listings 2015/16

Additional Specs, Equipment and Information:
Builder/Designer Nautor's Swan S&S
LOA: 11.66m Beam: 3.52m Draft: 2m
LWL: 8.75m Displacement: 8,300kg Ballast: 3,200kg
Engines Engine(s): Volvo Penta 2030 Engine(s) HP: 28

swan 38

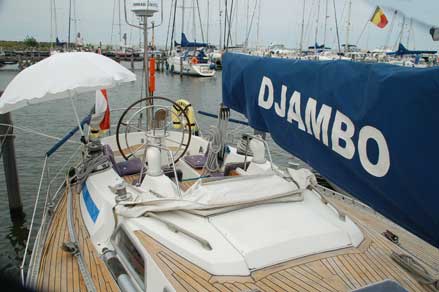

Hull, Deck and Superstructure

  • White GRP, hull, deck and superstructure cockpit and superstructure re-sprayed (2002)
  • Epoxy barrier coat treatment 2014 and antifouling : Epifanus Copper cruise
  • Hull polished in 2013/ 2014
  • Teak deck partially refurbishment (sanded, repaired and dowel replacement where necessary 2014)

Machinery, Propulsion & Steering

  • Volvo MD 2030  29 hp intercooling system (2002)
  • Shaft driven, with 3-blade Maxprop 16 inch (1998)

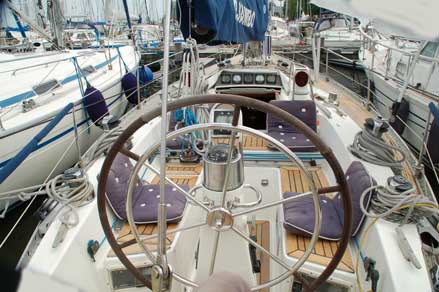

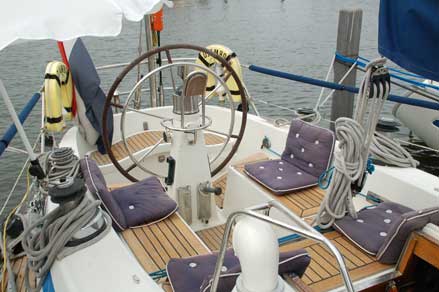

  • Wheel steering and emergency tiller (steering gear overhauled 2008 incl. steering cables and new Nautor wheel leather)

Electrical Systems

  • System :12v DC for domestic and engine . 220v AC incl. earth protection with battery charger Mastervolt 12/ 80 Amp. (1999), Inverter 300 watt .
  • Battery bank: 1 x engine and 2 service batteries 180 Amp (2008)
  • Battery control unit DCC 4000

Plumbing Systems

  • System 12v DC pressurized water system (pump replaced 2009) , Hot water supplied via engine drive colorifier or via 220v AC immersion heater from shore power (2002)
  • Water supplies: hot and cold water in galley and head/shower
  • Heating system: Eberspracher (2006)
  • Grey-and black water: Stainless steel drain tank with floating switch and connections to shower, mast drain and stuffing box. Grey and black water discharges overboard
  • Seacocks : re-greased 2013/2014

Tankage

  • Fuel capacity approx. 115 litres in stainless steel tank
  • Fresh water capacity approx. 200 litres in 2 stainless steel tanks

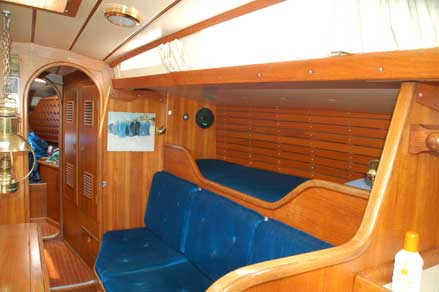

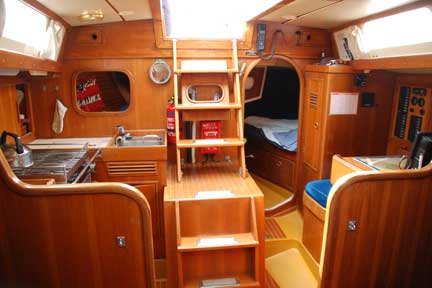

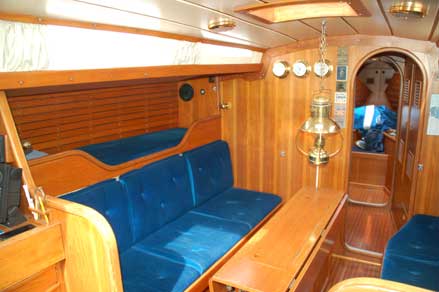

Accommodation

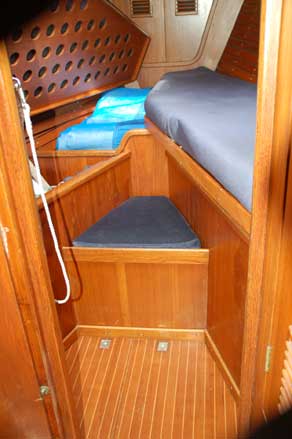

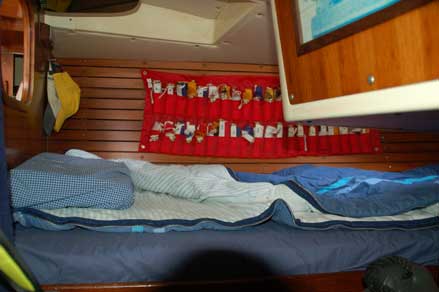

  • Up to 8 berths in forward V-berth cabin, saloon settees and pilot berths and aft cabin single berths
  • High original quality teak joinery
  • Cream vinyl head linings
  • Teak battened hull linings
  • Varnished teak & holly soleboards (re-sprayed 2002)

Domestic Equipment

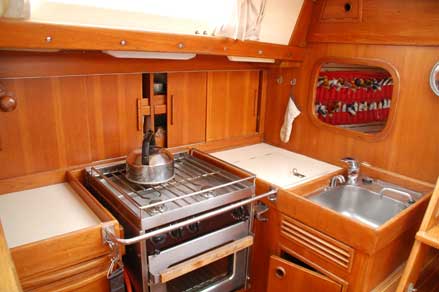

  • Galley 3 burner (Force 10 ) gas hob and oven (2001)
  • Fridge (Coolmatic) 12v / 220 v compressor
  • Sink with hot and cold pressurized water supply
  • Head / Shower: Baby Blake Marine WC (overhauled 2013 incl. hoses)
  • Entertainment : Radio/ CD player (Alpine) with sub wolver and speakers

Navigation Equipment

  • SIMRAD IS 15 log, depth, windset incl. magnified displays and repeaters on pedestal and chartable ( 2000),
  • some instruments are renewed the last years
  • SIMRAD Anritsu RA772 UA radar (2000)
  • SIMRAD CX 44 plotter (2006)
  • SIMRAD AP 22 autopilot (2007 renewed) with Whitlock drive unit
  • Shipmate RS 8300 with 2 handsets
  • SSB radio (Lowe HF 150)
  • ICS 4 navtex
  • Wempe barograph
  • Magellan Meridian Handheld GPS
  • Ritchie steering compass
  • LJ Harri clock, barometer hygrometer

Deck Equipment

  • Nautor aluminum alloy keel- stepped masthead-rigged mast , ‘short rig’ and single set on inline spreaders (the lower stay’ s are renewed in 2002)
  • aluminum alloy boom (Selden)
  • stainless steel rigging, furling forestay Furlex 310 S (1998)
  • Dyneema running rigging, (genua sheets replaced 2011)
  • aluminum rigging crew protectors
  • slab reefing mainsail system
  • full spinnaker gear with twin Carbon aluminum sprayed poles
  • vang (Selden rodkick)
  • hydraulic backstay adjuster

Winches

  • 2x Lewmar ST 56 2 speed primary winches
  • 2x Lewmar ST 42 2 speed spinnaker winches
  • 2x Lewmar ST 42 2 speed headsail halyard winches
  • 2x Lewmar ST 40 2 speed spinnaker halyard winches
  • 1 x Lewmar ST 30 2 speed for mainsail
  • 1x Enkes ST 10S 2 speed for mainsail reefing
  • 2x Streiss 22 for spinnaker pool down

Sails

  • All sails from North and UK Halsey/de Vries
  • Mainsail D cut soft Norlam (2008)
  • Genua 1 D cut Spectra (2008)
  • Genua 2 dacron (2001)
  • Genua 3 Pentex (2008)
  • Cruising/ furling genua (1998) (less used)
  • High aspect; pentex (2012)
  • Storm gib dacron
  • Symatric spinnaker approx.. 80 m2 (1990)
  • Symatric spinnaker approx. 100m2 (2001)

Anchoring and mooring equipment

  • 45 lbs CQR anchor with line
  • Warps and fenders

Covers, canvas & cushions

  • White sprayhood (2010)
  • Blue canvas mainsail cover (2008)
  • Bblue genua cover (2006)
  • Blue canvas wheel cover (1990)

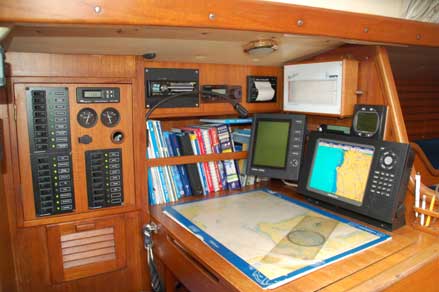

Swan 38 Chart table























Safety Equipment

  • 6-man liferaft RFD (serviced 06/ 2013 )
  • 2 yellow Lifebuoy’s with light (2013)
  • 2 life lines
  • offshore flare pack (2013)
  • radar reflector
  • 2 x manual fire extinguishers (2014)
  • 1 x fire blanket




General

  • Push pit, pulpit and guardrail stanchion integrated in toe rail
  • teak cockpit table
  • bathing ladder
